UMI Performance 93-02 F-Body Front Upper A-Arm Mounts Adjustable Coil Over Only

2 sold in last 8 hours
UMI Performance
UMI2335
Out of stock
Suspension Arms & Components
$229.99
When looking to mount a coilover to the front of your 4th generation Camaro or Firebird,...
Size Guide
customers are viewing this product
All Balls Racing 1997 Yamaha YZF1000 Fork Bushing Kit
All Balls Racing 1997 Yamaha YZF1000 Fork Bushing Kit
$61.47 $58.40
UMI Performance 65-70 GM B-Body Tie Rod Adjusting Sleeves
UMI Performance 65-70 GM B-Body Tie Rod Adjusting Sleeves
$59.99
UMI Performance 93-02 F-Body Front Upper A-Arm Mounts Adjustable Coil Over Only
Description

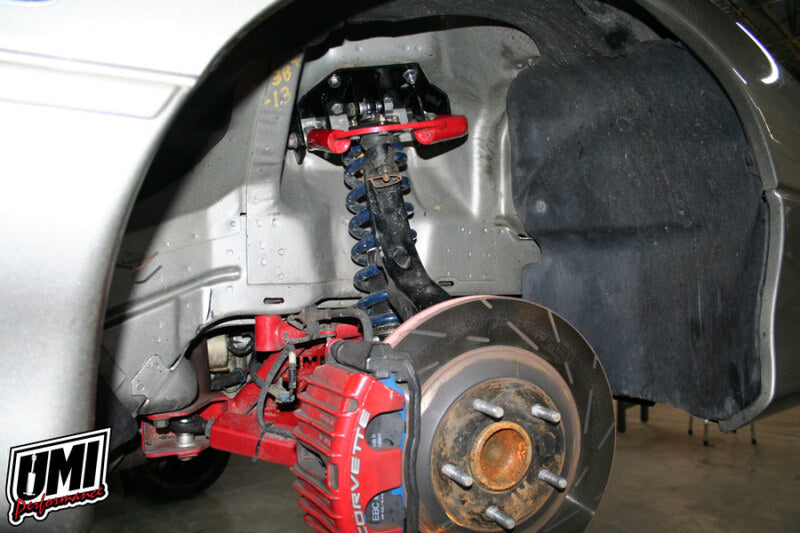

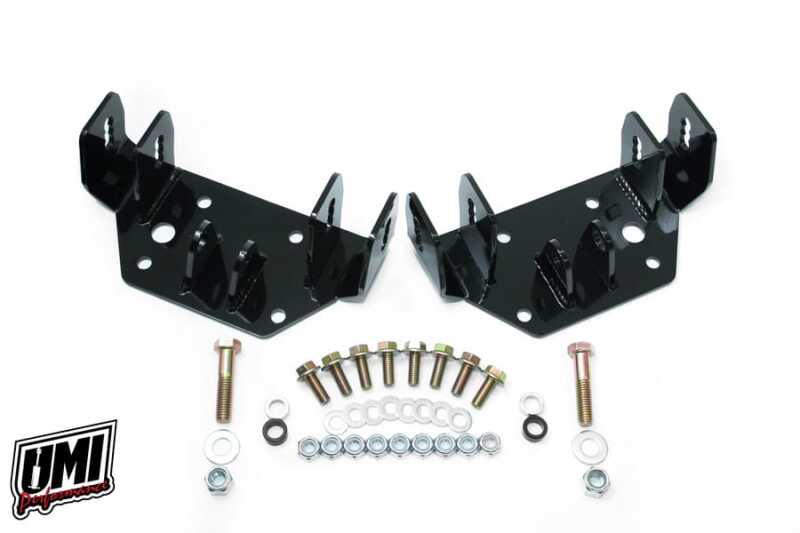

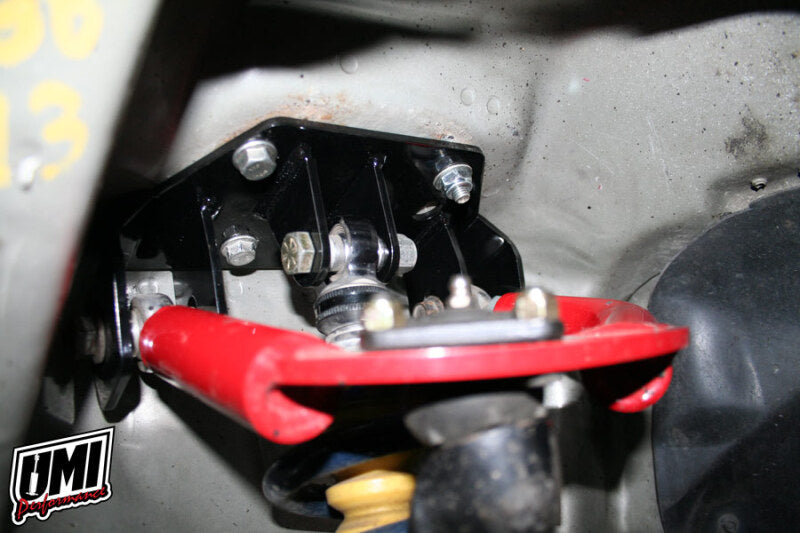

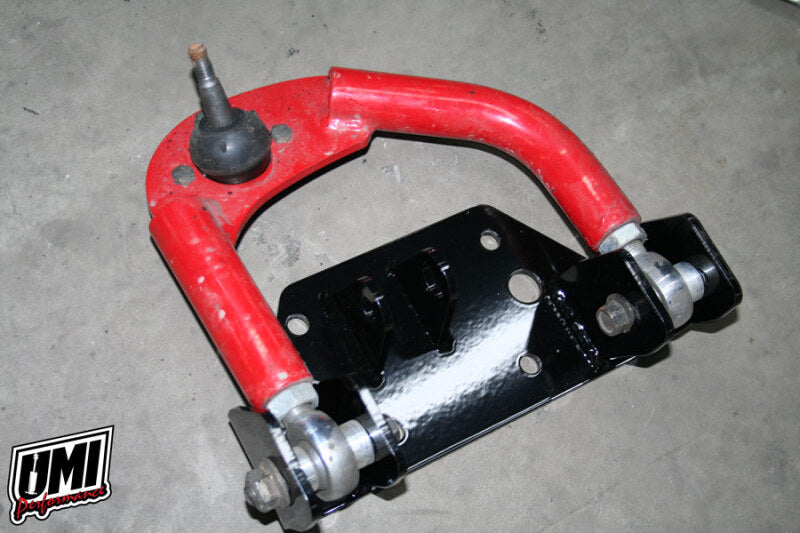

When looking to mount a coilover to the front of your 4th generation Camaro or Firebird, look no further than UMI’s new #2335 fabricated adjustable coilover a-arm mounts. The UMI upper a-arm mount is a direct bolt in upgrade that replaces the original GM mount and helps when converting to coilovers. The two stand-off tabs are angled perfectly to attach any bearing mounted coilover. Spacers are included to install coilover shocks with 1” or 1-1/4” wide bearing. UMI’s product features a unique fabricated design that allows the mounts to be strong without adding any extra weight. UMI’s kit is supplied with three upper a-arm adjustment holes for fine tuning the vehicles front suspension. The original factory holes are located at the center and driver has the option to raise or lower the a-arm mounting point 3/8 of an inch. Adjustment holes feature the ability to dial in the front roll center height. Raising the roll center height increases responsiveness and improves camber gain which allows a less aggressive street alignment to perform well when cornering. For street and drag applications choosing the center hole places the a-arm in the factory location. For ultimate performance use with UMI’s lower a-arms P/N 2317 or 2314 to run a true bearing to bearing mounted coilover (no more t-bar). As always, these products are extensively tested on UMI’s test cars in some of the harshest highway and racing environments. This makes them an excellent upgrade for the street cruiser to the road course expert.

This Part Fits:

Year Make Model Submodel
1993-2002 Chevrolet Camaro Base
1993 Chevrolet Camaro Indianapolis 500 Pace Car
1996-1997 Chevrolet Camaro RS
1993-2002 Chevrolet Camaro Z28
1998-2002 Chevrolet Camaro Z28 SS
1993-2002 Pontiac Firebird Base
1993-2002 Pontiac Firebird Formula
1993-2002 Pontiac Firebird Trans Am
1994 Pontiac Firebird Trans Am GT
